LGA SERIES
■Features/特性
1, This LGA series inductors are available in 4 from factors ranging from 0307 to 0512. 2, These are coaxial horizontal types, highly miniaturized and light-weight. 3, Epoxy resin construction assures high reliability.
■Applications/用途 Televisions, VCR, OA equipment, PC, Other electronic equipment, etc. |
|

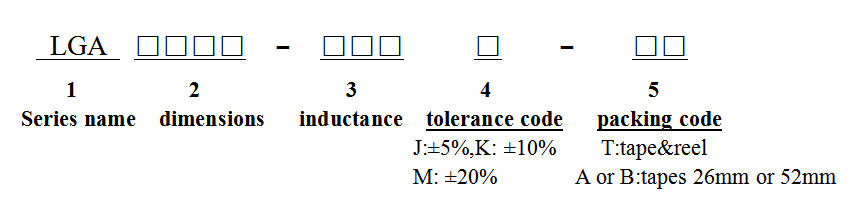

■Part numbering system/型號標示法

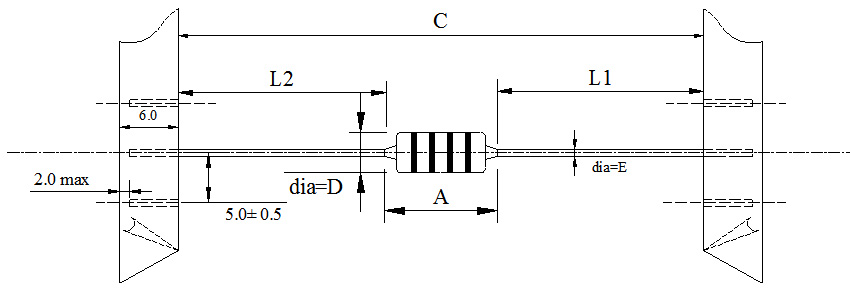

■Shapes and dimensions/外形及尺寸 (UNIT:mm)
| LGA0307TYPE: | A:7.0max | D:3.2max | C:52 or 26 | E:0.60 | |L1-L2|<1.0 |
| LGA0410TYPE: | A:10. | D:4.3max | C:52 | E:0.65 | |L1-L2|<1.0 |
| LGA0510TYPE: | A:10.0max | D:5.4max | C:52 | E:0.65 | |L1-L2|<1.0 |
| LGA0512TYPE: | A:12.0max | D:5.4max | C:52 | E:0.65 | |L1-L2|<1.0 |

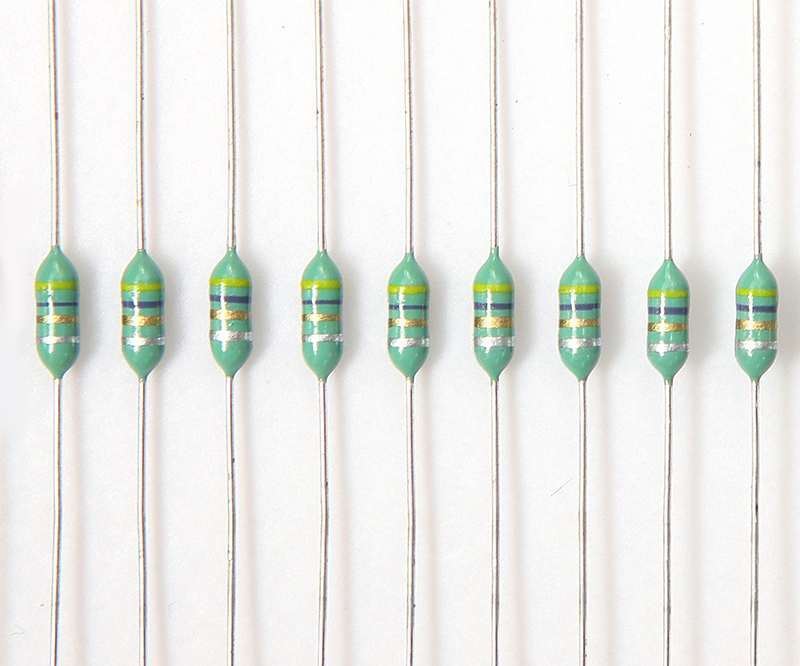

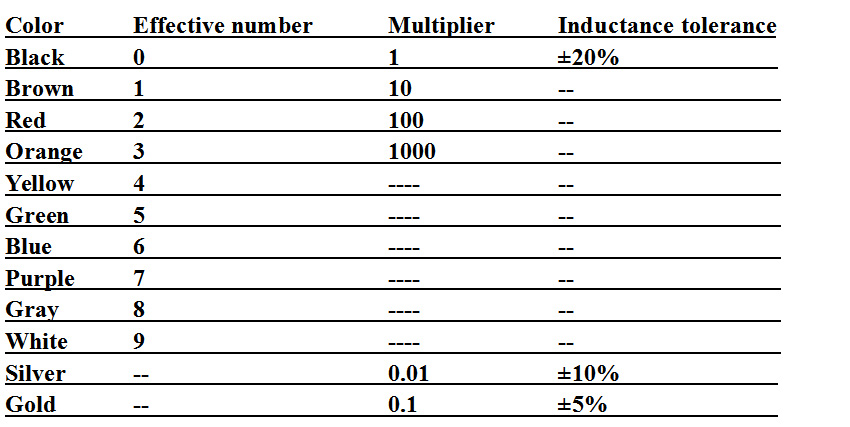

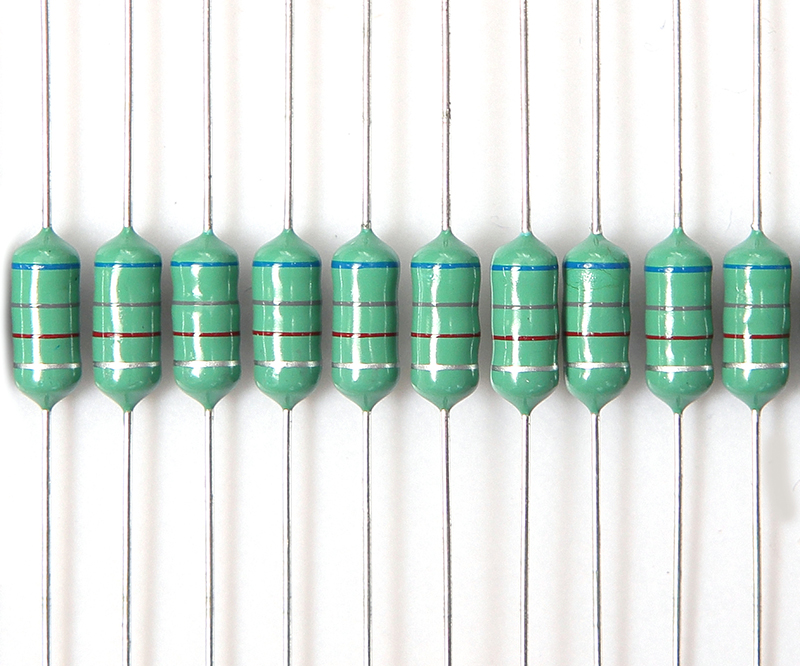

■Color code table色碼標示
Color code marking(from left)
1, The first effective number
2, The second effective number
3, Multiplier
4, Inductance tolerance

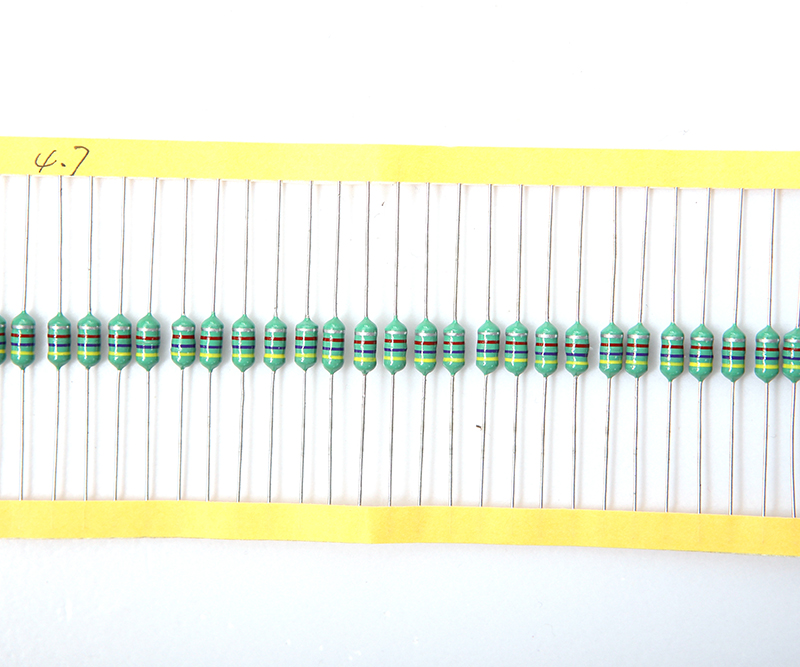

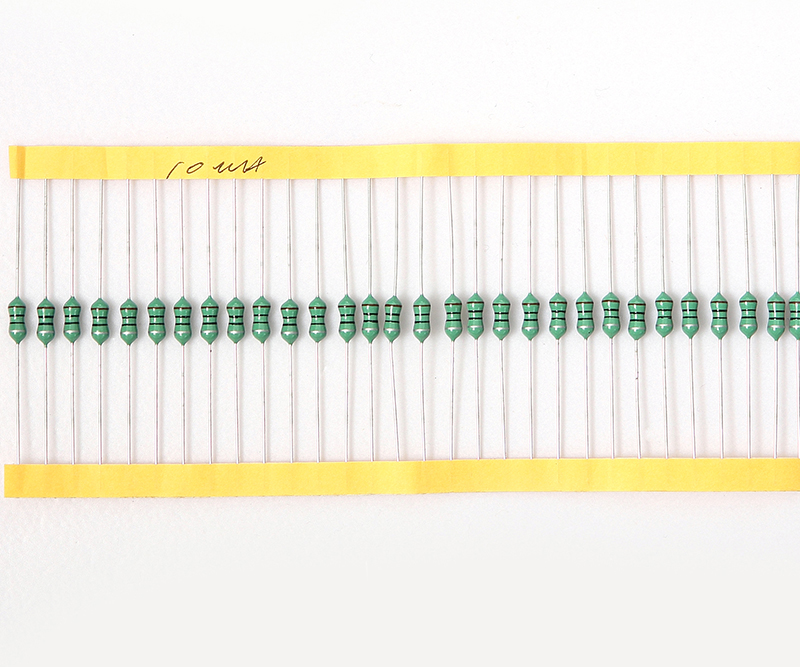

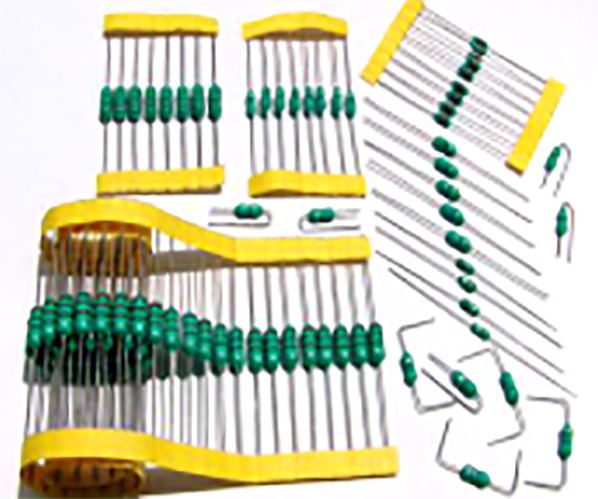

Packaging style and quantities
| Packaging style | Type | Quantity |
| Taping(Ammo-pack) | LGA0307 LGA0410 LGA0510(2) | 2000 pieces/box 2000 pieces/box 1000 pieces/box |

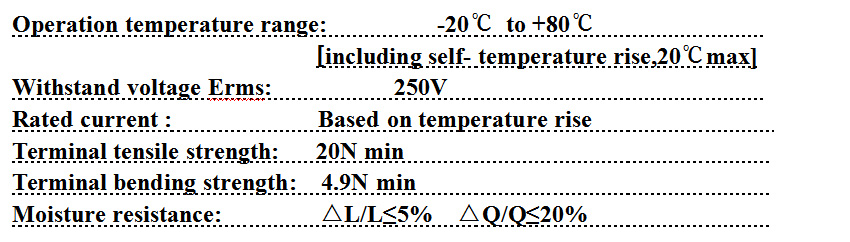

■CHARACTTERISTICS / 特性

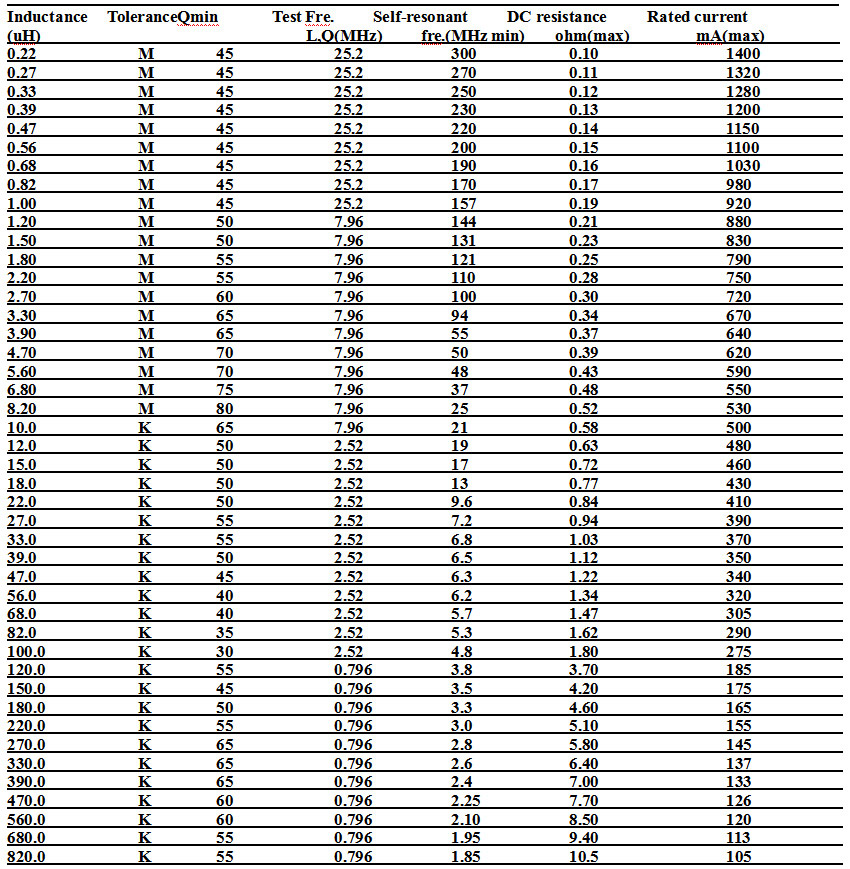

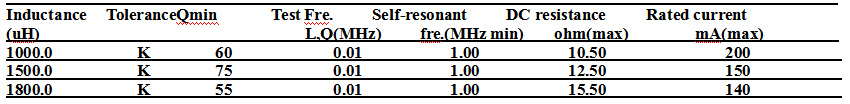

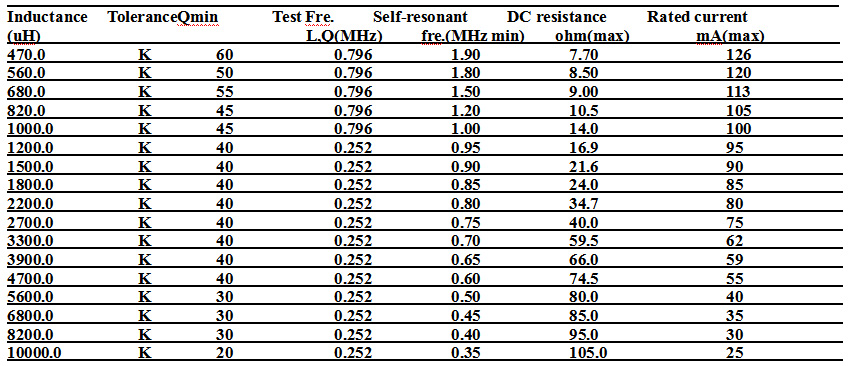

■LGA SERIES LGA0307 TYPE CHARACTTERISTICS
※Test meter: L&Q HP4284A; Srf HM2770;
※For special specifications please contact with us.
■LGA SERIES LGA0410 TYPE CHARACTTERISTICS
※Test meter: L&Q HP4284A; Srf HM2770;
※For special specifications please contact with us.
■LGA SERIES LGA0510 TYPE CHARACTTERISTICS
※Test meter: L&Q HP4284A; Srf HM2770;
※For special specifications please contact with us.
■LGA SERIES LGA0512 TYPE CHARACTTERISTICS
※This type of inductor used in "OSRAM" the company's low-power electronic ballasts,
The core structure and material differences in the general inductance.
